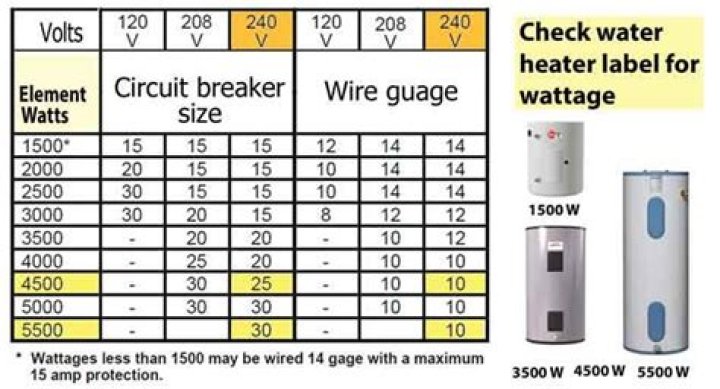

Water Heater Circuit Breaker Size
What size do I need for a 40 liter boiler?
This can also be on the side.
How many watts?
Your average 30- or 40-liter instant water heater is 4,500 watts and is usually powered by a 30-amp breaker.
I also asked what size switch do I need for a water heater?
Electric water heaters require a special 240 volt circuit that powers the water heater only and does not power any other devices or devices. The circuit wire typically contains a dual 30 amp switch and a 102 non-metallic (NM) or MC wire.
You may also be wondering how many amps does a 40 liter instantaneous water heater use?
Therefore, a 16-amp heater must be wired and protected by a 20-amp circuit, or a 20-amp breaker must deliver a maximum of 16 amps. Basically, a 4500W heater with 240V consumes 4500/240 or 18.75 amps, so depending on the code, a No. 10 and a 25 or 30 amp switch.
What size do I need for a 4500W water heater?
Wiring requirements are less stringent for 3800-watt elements than for 4500-watt elements. A 4500 watt element requires a 10/2 wire and a 30 A (220 volt) switch. 3800 can be connected with a 12/2 cable and a 20 amp switch.
What size do I need the circuit breaker for a 50 gallon instant water heater?
The standard for the water heater is No. 10, two ground conductors (10/2) and a 30 amp circuit breaker for a water heater.
What size do I need for a 240 volt water heater?
Since this is a purely resistive load, 5500 watts at 240 volts equals 23 amps, the switch size is 30 amps, and it uses 10 AWG wire. In your case, if the elements are connected to 4500 watts, the resistance will be 18.75 amps, the continuous pull load should be 80% of the breaking capacity, so a 20 amp is limited to 16 amps.
How many amps does a 50 liter boiler consume?
Most 50 amp water heaters are equipped with 4,500 watt elements. On a 240 volt circuit this is 4500/240 = 18.75 amps, so 20 amp breakers will not trip, but the breaker will be used at almost 95% of its 20 amps and most circuit breakers will not. will make.
Can I use a 40 amp breaker on a 10 gauge wire?
You can play with any math, but there’s no denying that a no. 10 can carry up to 30 amps and is not protected by a breaker that does not trip until more than 40 amps are connected.
Should I use a 4500 or 5500 watt boiler?
(1) If your heater has 4500 watt elements, the switch and wiring will work if the temperature is below 5500 watts. From a savings standpoint, 4,500 watts is better than 5,500 watts.
What switch do I need for a 3000 watt water heater?
What is the diameter of a 40 liter instantaneous water heater?
Smith® 40 Gallon Natural Gas Boiler, 18D x 613 / 4H
What Size Do I Need for a 40A Breaker?
12 gauge wire is fine for 20 amps, 10 gauge wire is fine for 30 amps, 8 gauge is fine for 40 amps and 6 gauge is fine for 55 amps and the circuit breaker or fuse is always sized to protect the conductor [Cable].
How many wires does a water heater need?
Electric water heaters generally require a special 30 amp 240 volt switch. The wire connecting the control panel to the water heater is usually a Romex 10/2 wire (hot black wire, hot marked white wire, grounded copper wire only).
What cable do I need for a 30 amp switch?
Any circuit with a 30 amp fuse must use at least 10 grams of copper or 8 grams of aluminum. Longer prints may require a thread size update. In your case, use at least 10 pieces of copper for the soldering device, regardless of the distance from the control panel.
How far must the boiler be from the control panel?
What is a 30 amp 2 pole breaker?
Question: Are both sides of the double switch 30 or 15 amps?
Answer: Both are 30 amps. A double switch can be used as two single switches to supply 120 volts to two separate circuits. If you have a dual 30 amp switch, you can connect a single 10 gauge hot wire and it will work for 120 volts.
What size do I need for a 2000 watt water heater?
The point is that a 2000-watt, 120-volt water heater should be connected to a 30-amp circuit made up of a no. 10 and a 30 amp single pole switch.
Which cable should I use for a stove?
Electrical range 220-240 Volt, 60 Hertz, properly grounded circuit with 40A breaker or fuse with # 8 diameter wire. A 6 gauge wire is required for a 50 amp breaker.
Which cable is used for the 220?
If you connect a 220V, 20A outlet to use power tools, you can use the same 12ft cord that you would use for a 110V, 20A circuit. Note that the cord must have an extra hot wire. If the device draws 30 amps, you will need a different type of enclosure and the cable should be 10 meters long.
Are the water heaters 110 or 220?
What is a 10 3 wire?
If you specify 10/3 wires, you will usually get a 4 wire cable. It will be a black, red, white and non-insulated wire. The best way to connect it is to connect the black and red wires to the control box so that you have 230 volts on top and the white wire is neutral.
